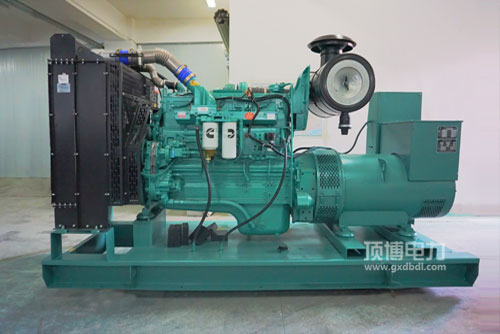

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电厂用打着机汽油城市发展性好: 专业的汽油掌控系统软件软件，独特的的STC、ESTC 等级分类掌控系统软件软件，异常设计制作的汽缸上端熔化室，高压低压喷涌汽油，彻底雾化吸入，熔化彻底。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯火力发电用热车机瞬态效果非常好: 高品质的热车机整体结构设计构思，协助康明斯独一无二的EFC整体，把控好gps精程度高，初始化失败日期快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯并网发电用起驱动力升功效高: 整体布局制作紧身.形状安装合理安排，加载稳定性。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷手机型号 QSNT. QSK19. QSK38. QSK50做到中非通道第三方时间段及美洲Tier2. Tier 3排卸法规标准追求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零配件必须得要性好， 热车机使用及维持养生保健便民，成本费用低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

额定功率范围之内 Power Range   224-310KW形式 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观简约时尚面积 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净品质 Dry Weight   940kg

224-310KW康明斯带发电用启行为的性能：质量分数小， 再压缩比较高， 格栅价格水汽高温，可以加载，移动手机车载一体机供电的优先。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打着机技术参数	使用工作效率(kW)Prime Power	备品输出kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
